EVH 5150 Iconic Series 15-Watt 1X10" Guitar Amp Combo Ivory

The EVH® 5150® Iconic® Series satisfies the needs of gigging and recording guitarists craving that powerful EVH tube tone at a more affordable price. Evolving from the revered and flagship EVH 5150III® amplifiers, the Iconic amplifiers deliver the searing sound and growling gain that Eddie Van Halen made famous.

Collaboratively designed by the EVH team and led by renowned amp engineer, James Brown, the 5150® Iconic® Series 15-watt 1x10 combo has a 6L6 power tube voiced by a complex, multi-stage hybrid preamp section anchored by a pair of ECC83 tubes, providing all the muscle you need for a modern-day practice amp. The cabinet features special internal plywood baffling for tight and increased bass response, and houses a custom-designed EVH 10” Celestion® speaker voiced specifically for this preamp circuit, so that the pristine cleans and searing high gain tones are tight, clear and articulate.

Punching above its weight, this combo features two channels with an extra voicing on each for even more versatility. The Green channel boasts an overdrive button to run from clean tones to increased gain, while the Red channel’s burn button adds fiery crunch that’s ideal for blistering leads.

Each channel houses its own gain and volume controls, allowing for level-matching the volume when switching between the clean and high gain channels. The control panel also includes shared EQ (Low, Mid and High), global resonance and presence knobs to adjust the low- and high-end aspects of your tone, and a global reverb control to add the perfect amount of bounce and decay for any room.

Other features include a one-button footswitch, effects loop, dual parallel speaker output jacks, ¼ power switch to reduce wattage—allowing you to crank the amp and still preserve tone but without destroying your neighbor's solitude. The 1/8” audio in allows for playing along with your favorite drum tracks or songs, while the 1/8” emulated cab headphone/recording out allows for accurate all-tube EVH tone while recording direct or using through any PA system.

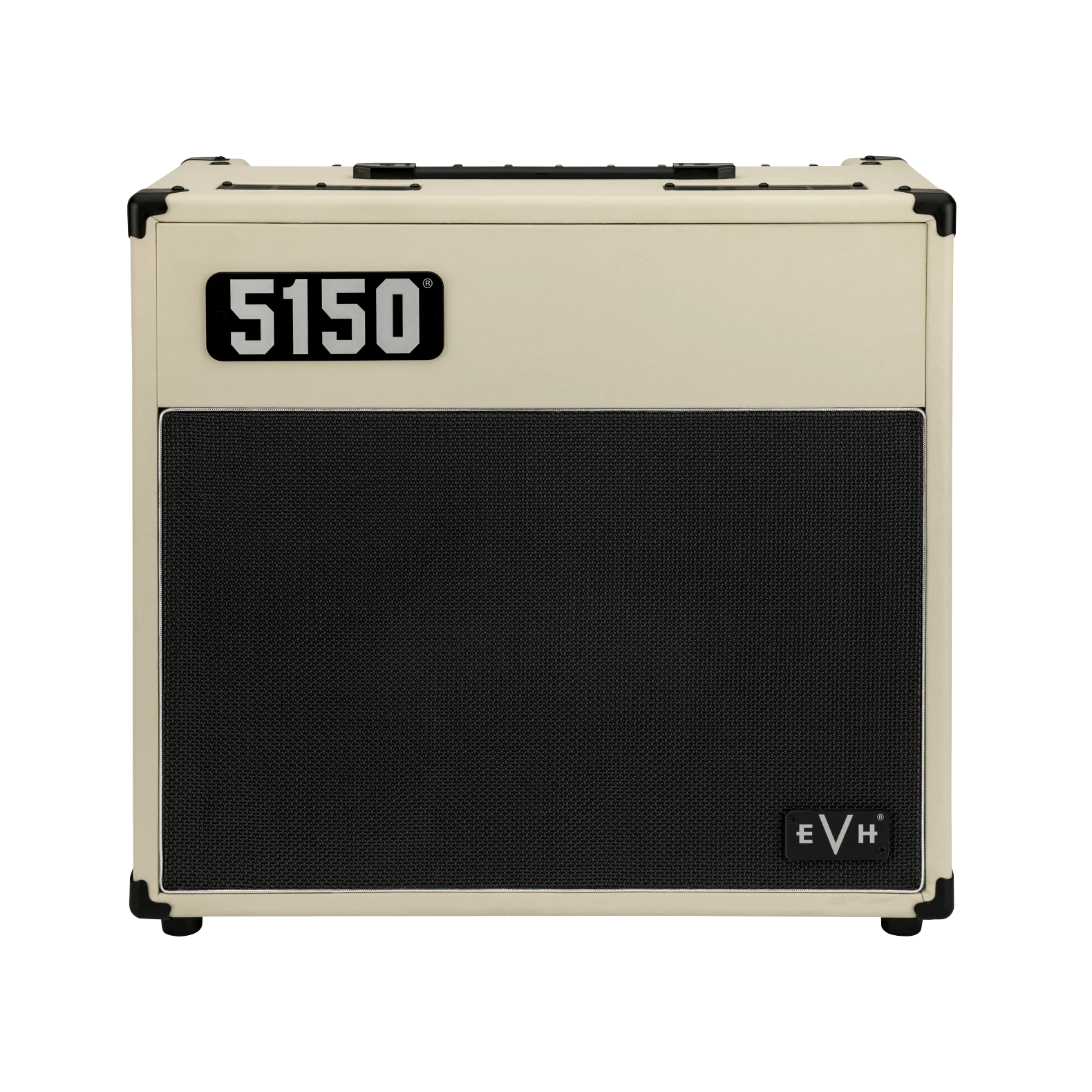

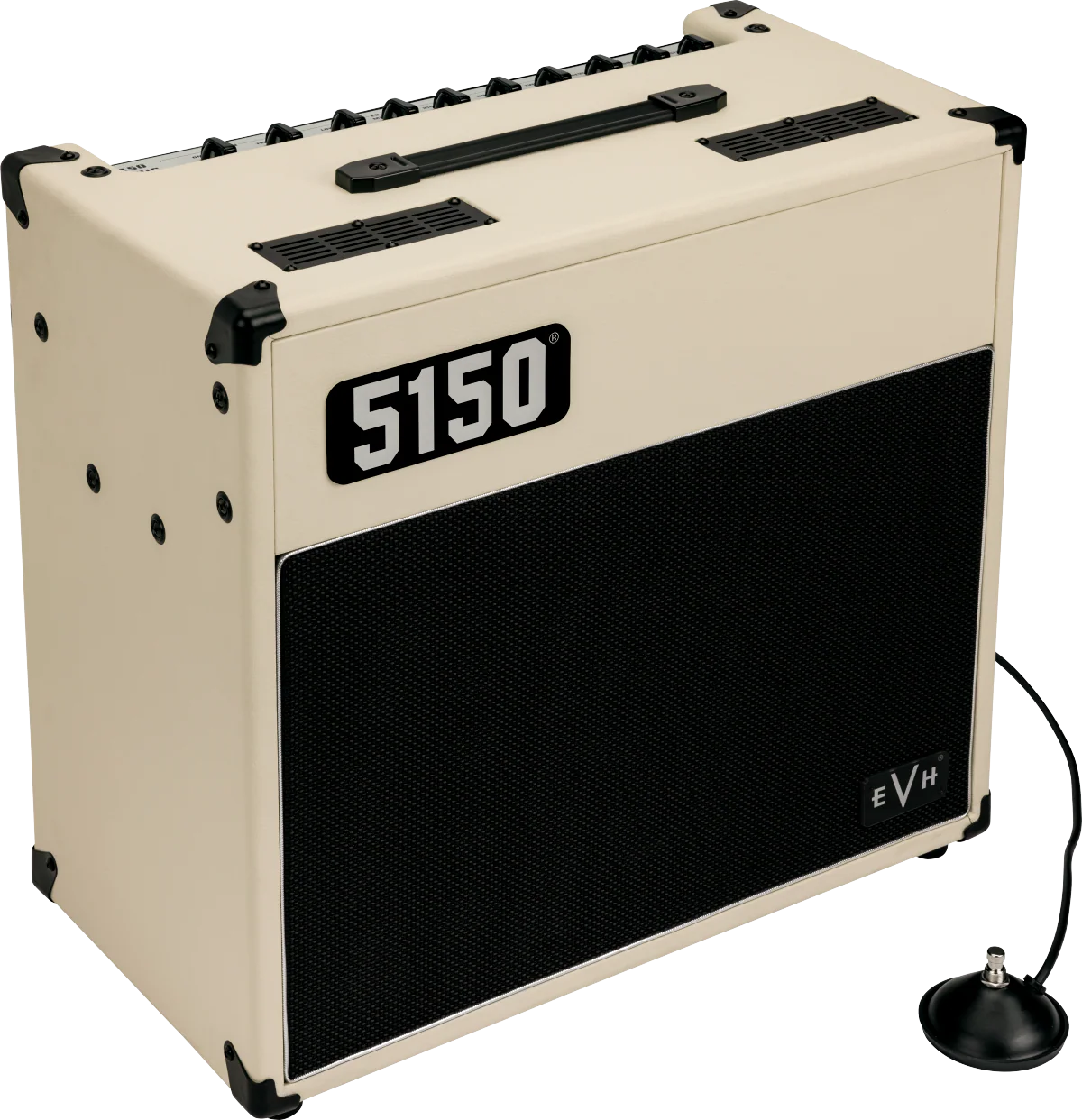

Sporting distinctive EVH style, the 5150 Iconic Series 15W 1x10 combo is wrapped in either Black or Ivory textured vinyl with a black cloth front grille and features silver and black 5150 and EVH logo badges in the upper left and lower right corners. This all-tube combo is finished off with a brushed aluminum top panel, vintage-style chicken-head knobs and molded black plastic top handle. A high-quality fitted cover is available as an EVH Accessory.

FEATURES

• 15-watt 1x10 combo
• Two channels: Green and Red; Green channel has overdrive button to go from clean to increased gain, while the Red channel has a burn button to go from lead to burn
• Dual Gain, Shared Low, Mid, High EQ, Dual Volume, Shared Global Reverb, Resonance and Presence controls

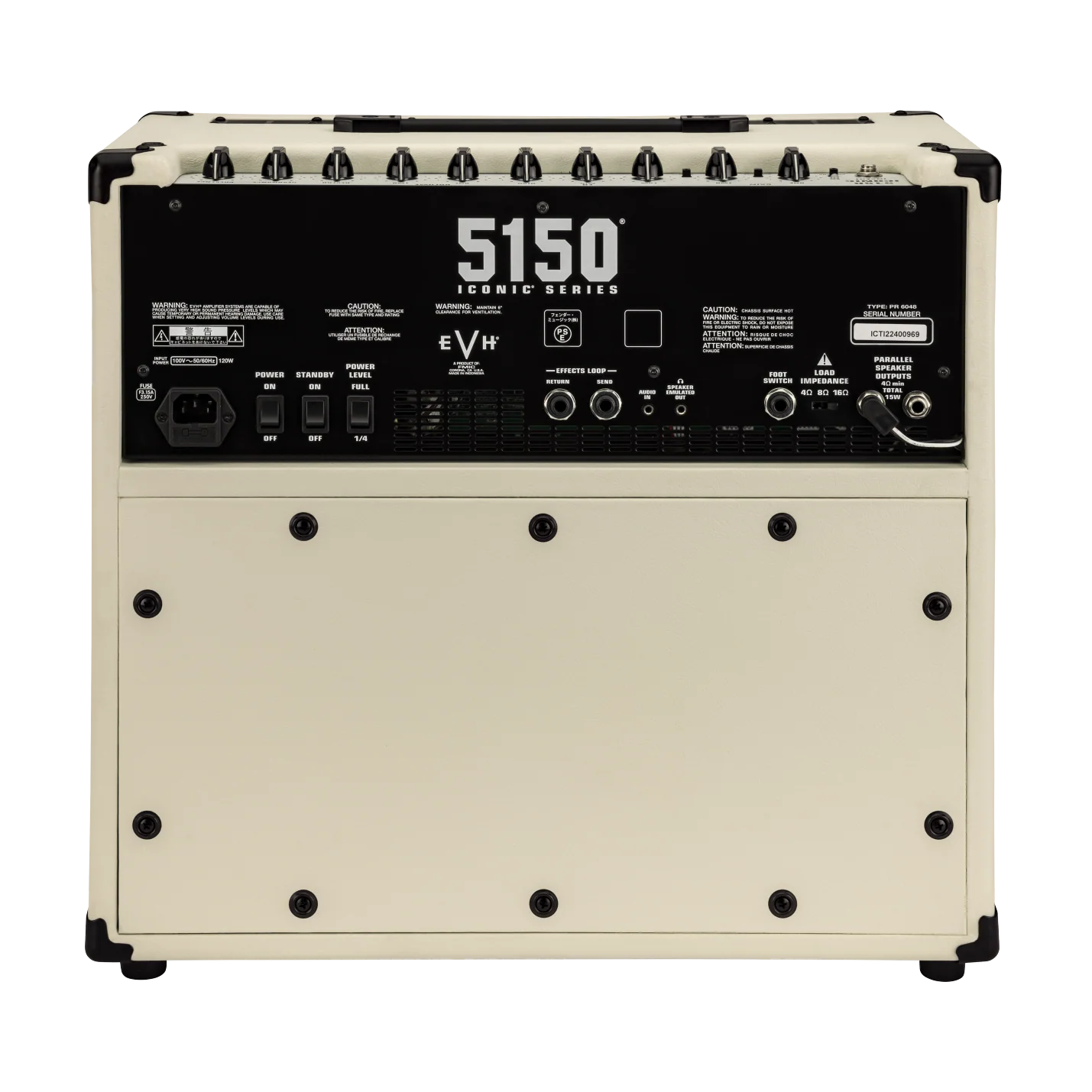

• ¼ Power level switch, standby switch, power switch and ground lift located on rear panel
• Selectable impedance (4, 8 or 16 ohms)
• Two ECC83 preamp tubes and one 6L6 power tube
• One 10” EVH® Celestion® Custom speaker
• 1/8” audio in and 1/8” emulated cab headphone/recording out
• Dual parallel speaker output jacks
• Effects loop
• One-button footswitch included
• Available in Black or Ivory with black cloth front grille and silver and black 5150® and EVH® logo badges
• Optional high-quality fitted cover is available

PRODUCT SPECS

General

SERIES: Iconic
COLOR: Ivory
AMPLIFIER TYPE: Tube
COUNTRY OF ORIGIN: CN

Electronics

CONTROL PANEL: Channel 1: Gain w/ Overdrive Switch; Channel 2: Gain w/ Burn Switch; Shared Low, Mid, High EQ; Channel 1/Channel 2 Volume; Global Reverb, Resonance and Presence
INPUTS: One - 1/4"
AUXILIARY INPUT: 1/8 in (3.5 mm) Stereo
HEADPHONE JACK: 1/8" Stereo
LINE OUT: One - (1/8" Stereo)
CHANNELS: Two - Clean/Overdrive and Lead/Burn
EFFECTS: Reverb
EFFECTS LOOP: 1/4" (Send/Return)
CONNECTION TYPE: 1/4"
VOLTAGE: 120V
WATTAGE: 15 Watts

Speakers

SPEAKERS: One - 10" EVH® Celestion® Custom
SPEAKER WATTAGE: 15 Watts
TOTAL IMPEDANCE: 4, 8, or 16 ohms

Hardware

CONTROL KNOBS: Black Chicken-Head Style Pointer
AMPLIFIER COVERING: Textured Vinyl
CABINET MATERIAL: MDF w/ Plywood Baffle
GRILLE CLOTH: Black
HANDLE: Molded Plastic Strap with Black Powder Coated Caps
AMPLIFIER JEWEL: Red Jewel
SPEAKER JACK: Two - 1/4" Parallel
FRONT PANEL: Brushed Aluminum

Tubes

POWER TUBES: 1 - 6L6
PREAMP TUBES: 2 - ECC83
RECTIFIER: Solid State

Measurements

DIMENSIONS: 14.50x22.50x23.60 IN
POWER TUBES: 1 - 6L6

Accessories

FOOTSWITCH: 1-Button Footswitch Included

Miscellaneous

UNIQUE FEATURES: 1/4 Power Level Switch
POWER CABLE: IEC

MODEL #:2257300410
